DVR 4CH TVI KIT + 4 5MP Cameras

DVR 4CH TVI KIT + 4 5MP  Cameras

4 x 5M LITE-T DAY/NIGHT TVI TURRETS

Specifications

SC-A336-4

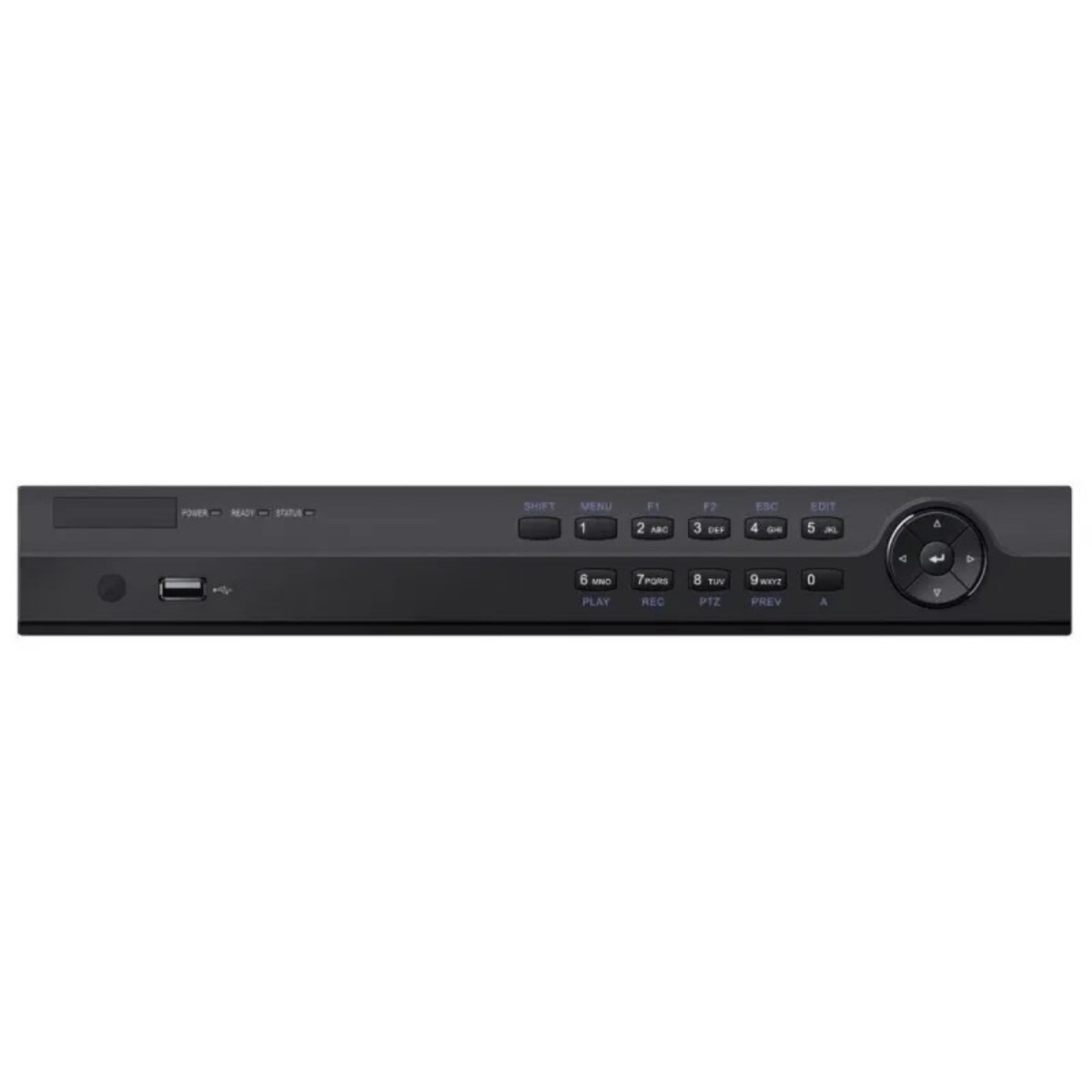

ACUSENSE DVR

• Deep learning-based motion detection 2.0 for all analog channels
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 8ch IP camera inputs (up to 8 MP)
• 1TB HDD included

• 4-ch analog camera inputs, up to 8MP. Supports HDTVI/AHD/CVI/CVBS analog cameras
• Supports an additional 4 IP cameras, up to 8MP. IP camera input can be increased to 8-ch by disabling analog channels
• 1-ch HDMI output, up to 4K@30Hz or 1440p@60Hz. 1-ch VGA output, up to 1080p@60Hz
• Supports H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 for video compression
• 1 SATA interface, up to 10TB hard drive (hard drive not included)
• Motion Detection 2.0, which is available for all analog channels, utilizes AI to automatically detect humans and vehicles to reduce false alarm notifications from debris blowing in the wind or other unwanted objects

• Channels	4
  Resolution	Up to 8 MP

  Network

  Input Bandwidth	40 Mb/s
  Output Bandwidth	60 Mb/s
  Network Protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, and UPnP

  Video Output

  Recording Resolutions	8MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
  HDMI/VGA Output	1 channel
  Output Resolutions	4K UHD (3840 x 2160) at 30 Hz; 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz

  Decoding and Playback

  Decoding Formats	H.265+, H.265, H.264+, H.264, MPEG-4
  Live View / Playback	8MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
  Synchronous Playback	4 channels
  Capability	1 Channel at 8 MP; 4 channels at 1080p

  Hard Disk

  SATA	1 x SATA interface
  Capacity	Up to 6 TB 1 TB preinstalled

  External Interface

  Network Interface	1 x RJ45, 10M/100M self-adaptive Ethernet port
  USB Interface	2 x USB 2.0

  Interface	1-port RJ45 10/100 Mb/s self-adaptive Ethernet interface
  Power
  	IEEE 802.3af/at

  General

  Power Supply	48 VDC
  Power	≤50 W
  Power Consumption	Without HDDs: ≤10 W
  Operating Temperature	14 to 131°F / -10 to 55°C
  Operating Humidity	10 to 90%
  Rack Height	1 U
  Dimensions	10.2 x 8.9 x 1.9″ / 260 x 225 x 48 cm
  Weight	2.2 lb / 1 kg, without HDD

  Packaging Info

  Package Weight	5.2 lb
  Box Dimensions (LxWxH)	16 x 11 x 4″
