Name: UNV KIT301-08LS3-W/4*2122LB-ABF40WK-G 8 Channel 5MP
Brand: UNV
SKU: 12706
Availability: InStock

UNV KIT301-08LS3-W/4*2122LB-ABF40WK-G 8 Channel 5MP

$689.99

UNV KIT301-08LS3-W/4*2122LB-ABF40WK-G 8 Channel 5MP

Compare

UNV KIT301-08LS3-W/4*2122LB-ABF40WK-G 8 Channel 5MP

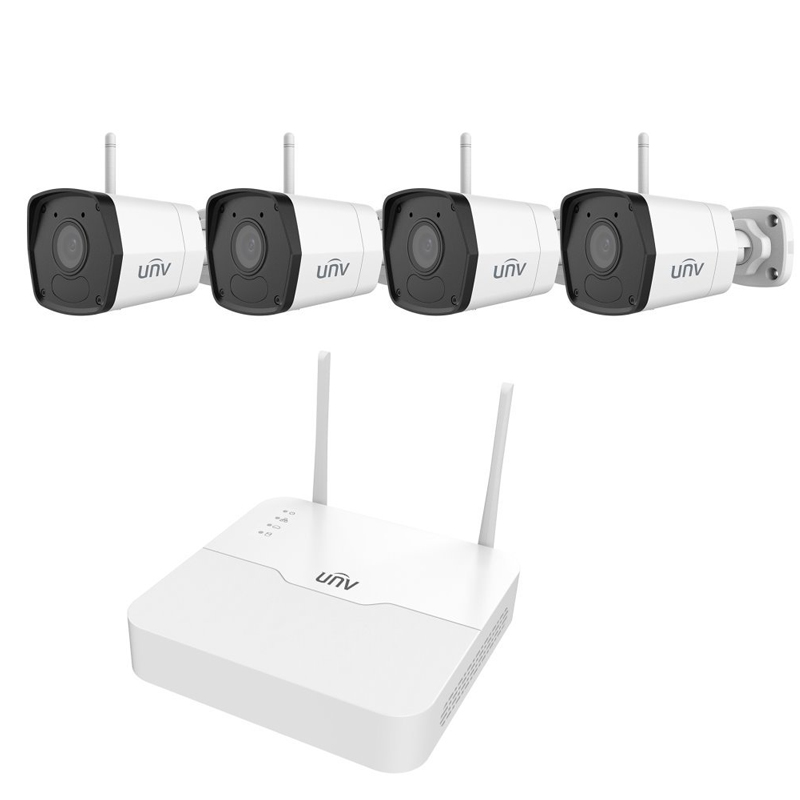

UNV KIT301-08LS3-W/4*2122LB-ABF40WK-G 8 Channel 5MP Wi-Fi NVR with 1TB HDD & 4 Wi-Fi 2MP Cameras Kit

NVR：

-Embedded WiFi Module with high-performance and high stability

-Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access

-Support Ultra 265/H.265/H.264 video formats

-8-channel input

-Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

-Support 1-ch HDMI, 1-ch VGA

-HDMI and VGA synchronous outputs provided

-Up to 5MP resolution recording

-1 SATA HDD, Up to 6TB for each HDD

-Support cloud upgrade

Camera：

-Day/night functionality

-Smart IR , up to 30 m (98 ft) IR distance

-Optical glass window with higher light transmittance

-IR anti-reflection window to increase the infrared transmittance

-2D/3D DNR (Digital Noise Reduction)

-Ultra 265,H.265, H.264

-Triple streams

-ONVIF Conformance

-Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)

-Wide voltage range of ±25%

-IP67

Sensor	1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F2.0
DORI Distance	Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	4mm	60		24	12		6
Angle of view(H)	86.5°
Angle of View (V)	44.1°
Angle of View (O)	106.4°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°			Rotate: 0°~360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.02 Lux (F2.0 AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream:2MP (1920×1080): Max. 20 fps; Sub Stream: 720P (1280×720): Max. 20 fps; Third Stream: 4CIF (704×576): Max. 20 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP
Compatible Integration	ONVIF (Profile S, Profile T), API
Wi-Fi
Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm
Receive Sensitivity	802.11b: -90dBm @ 11Mbps (Typical) 802.11g: -75dBm @ 54Mpbs (Typical) 802.11n: -74dBm (Typical)
Transmission Rate	802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC(+/-25%)
	Power consumption: Max 6.4 W
Dimensions (L × W × H)	162.6 x 62.4 x 62.7 mm (6.4″x2.5″x2.5″)
Weight	0.25 kg (0.55 lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Ingress Protection	IP66
Reset Button	Supported
