Name: UNV EKDL-S31P4T44T1 4pcs-4MP IP
Brand: UNV
SKU: 12702
Availability: InStock

UNV EKDL-S31P4T44T1 4pcs-4MP IP

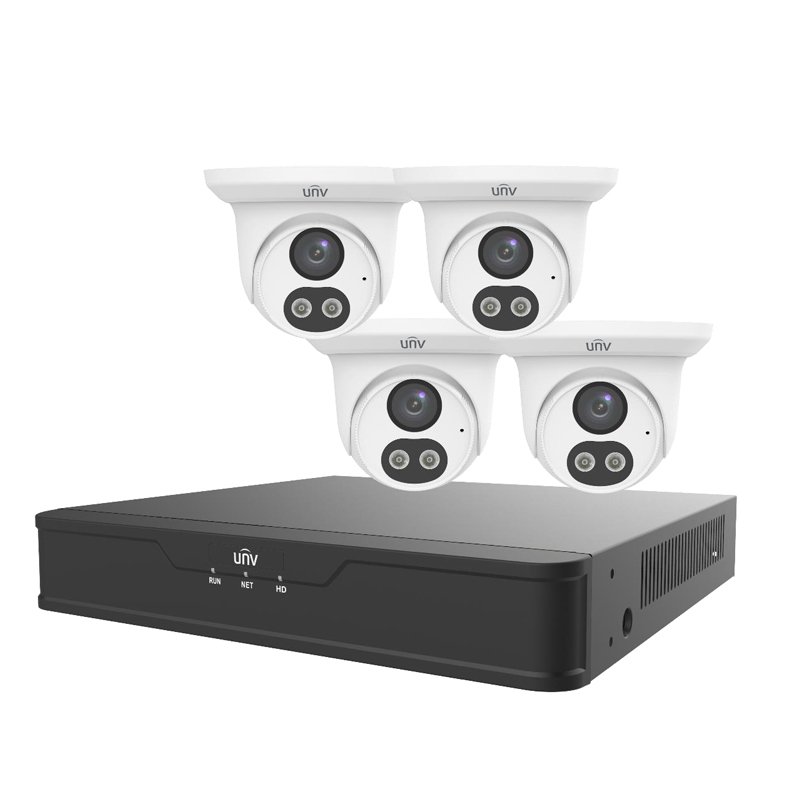

UNV EKDL-S31P4T44T1 4pcs 4MP IP Turret Duel Light camera Kit with 4CH & 1TB HDD

EC-T4F28M-DL

– Day/night functionality
– Smart dual light, up to 30 m (98 ft) IR/warm light distance
– 2D/3D DNR (Digital Noise Reduction)
– Ultra 265, H.265, H.264, MJPEG
– Built-in Mic
– ROI (Region of Interest)
– ONVIF Conformance
– Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
– Wide voltage ranges of ±25%
– IP67

NVR301-04S3-P4

– Support Ultra 265/H.265/H.264 video formats
– 4-channel input
– Plug & Play with 4 independent PoE network interfaces
– Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
– Support 1-ch HDMI, 1-ch VGA
– HDMI and VGA simultaneous output
– Up to 8MP resolution recording
– 1 SATA HDD
– Support cloud upgrade

Model NVR301-04S3-P4
Video/Audio Input
IP Video Input	4-ch Network
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	48Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Video/Audio Output
HDMI Output	4K (3840×2160)/30Hz, 1920×1080/60Hz, 1600×1200/60Hz, 1280×720/60Hz
VGA Output	1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz
Recording Resolution	4K, 5MP, 4MP, 1080p, 720p, CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	4-ch
Corridor Mode Screen	3/4 Decoding
Decoding Format	Ultra 265, H.265, H.264
Hard Disk
SATA	1 SATA Interface
Capacity	Up to 8TB
Smart Features
VCA Detection by Camera	Face, Intrusion, Cross line, Audio, Enter/Leave Area Detection
VCA Search	Face Search, Behavior Search
External Interface
Network Interface	1 RJ45 10M/100M Ethernet
USB Interface	2 x USB2.0 (rear panel)
PoE Interface	4 RJ-45 10M/100M Ethernet
Max Power	30W (single port), 54W (total)
Supported Standards	IEEE 802.3at, IEEE 802.3af
General
Power Supply	48V DC
Power Consumption	≤9W (without HDD)
Working Environment	-10°C ~ +55°C, ≤ 90% RH (non-condensing)
Dimensions	260mm x 240mm x 46mm
Weight	≤1.1kg (without HDD)

Model EC-T4F28M-DL Camera
Camera Specifications
Resolution	4MP
Sensor	1/3.0″ CMOS
Min. Illumination	Color: 0.01 lux, 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
S/N Ratio	>52dB
WDR	DWDR
Lens
Type	2.8mm
Iris	Fixed, F1.6
Field of View	H: 97.0°, V: 52.2°, D: 107.5°
Illumination
IR Distance	30m
Warm Light Distance	30m
Wavelength	850nm
Video Specifications
Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4MP @ 25fps; Sub Stream: D1 @ 30fps
Video Bit Rate	128 Kbps~6144 Kbps
Audio Specifications
Audio Compression	G.711U, G.711A
Two-way Audio	Not Available
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, HTTPS
User Levels	Up to 32 users
Functionality
Defocus Detection	Supported
Face Detection	Supported
Motion Detection	Supported
Temperature Alarm	Supported
Power Supply	12V DC ±25%
Dimensions	Φ104 x 97.3mm
Weight	Net Weight: 0.3kg, Gross Weight: 0.4kg
Material	Metal + Plastic
