Name: TP-LINK VIGI NK4P-T4425-2T 4pcs-4MP
Brand: Tp-Link
SKU: 12694
Availability: InStock

TP-LINK VIGI NK4P-T4425-2T 4pcs-4MP

$779.99

TP-LINK VIGI NK4P-T4425-2T 4pcs-4MP

Compare

TP-LINK VIGI NK4P-T4425-2T 4pcs-4MP

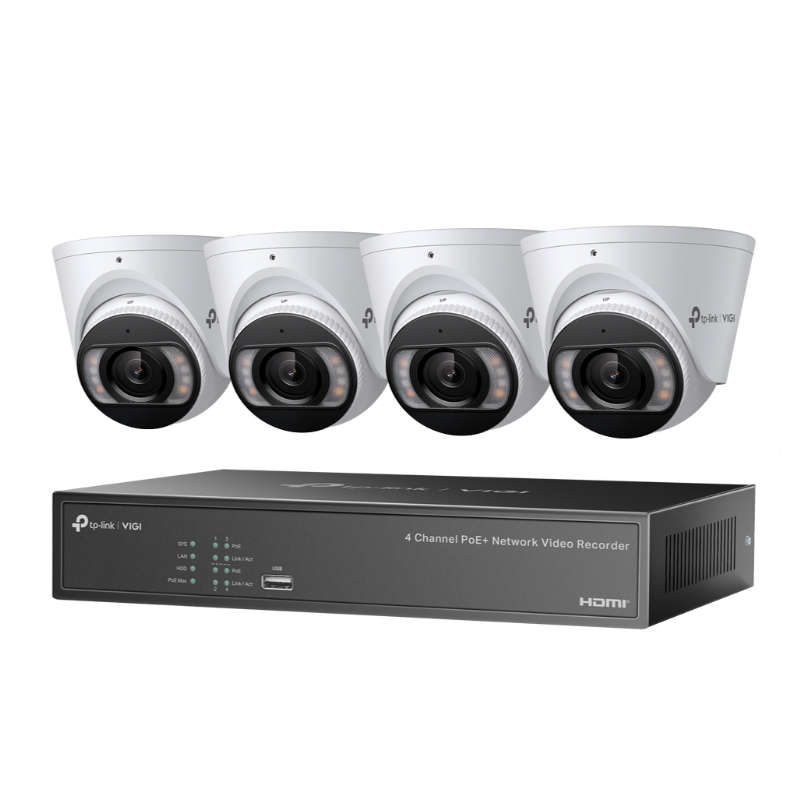

TP-LINK VIGI NK4P-T4425-2T 4pcs 4MP Full-Color Turret IPC & 4 Channel PoE+ NVR KIT with 2TB HDD installed

Plug and Play

-Simpler Installation with PoE Technology

-Non-Stop Protection

-Ideal for Small-scale Scenarios

-2TB HDD Preinstalled

-24/7 Color camera

-AI Smart Kit

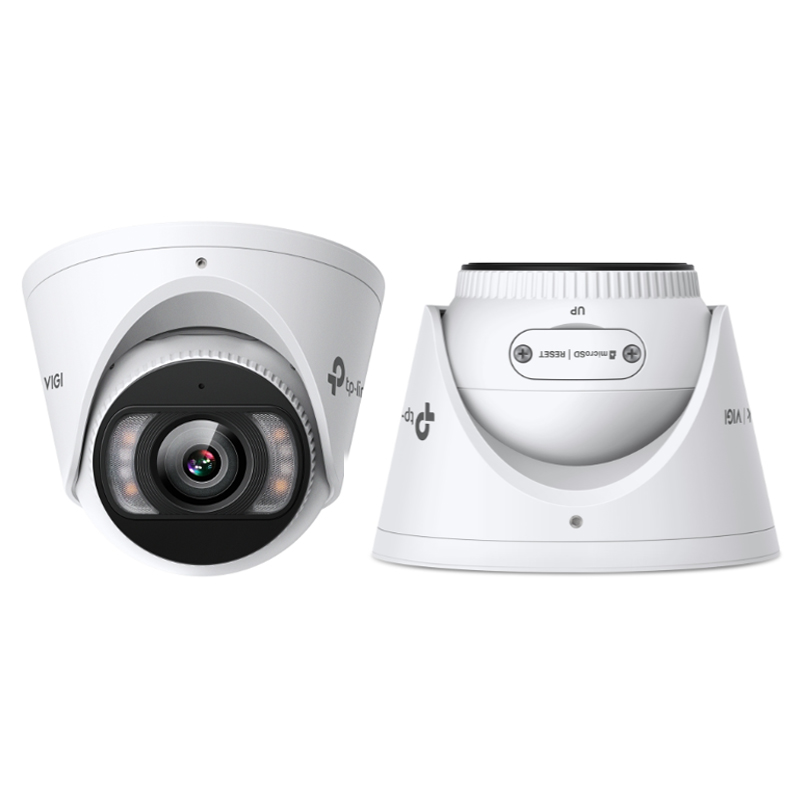

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	F1.6
Lens	2.8 mm, Fixed Focal Lens
Lens Mount	M12*P 0.5
FOV	Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
White LED	• Quantity: 4 • Range: 30m
IR LED	• Quantity: 4 • Range: 30m • Wavelength: 850nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Max. Resolution	2688 x 1520
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 704×576,640×480, 352×288, 320×240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
Operating Temperature	-30–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Power Supply	• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12 W
Weatherproof Rating	IP67

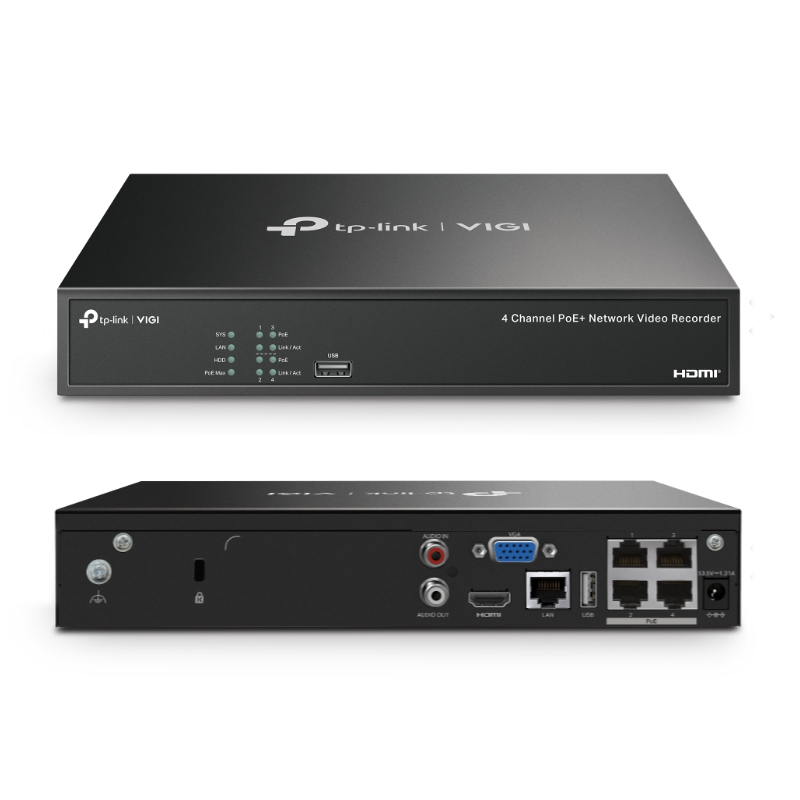

NVR
IP Video Input	4-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/ QCIF
Synchronous Playback	4-Channel*
Decoding Capability	• 25fps: 2-ch @ 8MP, 4-ch @ 4MP• 30fps: 4-ch @ 4MP, 3-ch @ 5MP
Hard Disk	• 1 SATA Interface • Up to 10 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled
PoE Budget	53 W Available for All PoE+ Ports^†, 30 W Max per Port
Power Supply	53.5V DC/1.31 A
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
