Video Doorbell Two-way Talk Waterproof

Video Doorbell Two-way Talk Waterproof

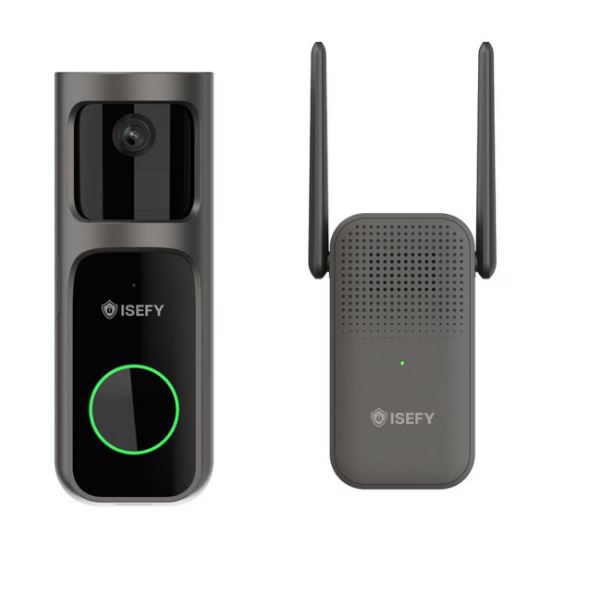

Video Doorbell 2S Set 5000mAh Rechargeable Battery 30°Pan Lens Human Detection Two-way Talk Waterproof 100% Wire-Free Chime

With 3MP/2K live monitoring, ultra wide-view lens with 30° pan features, Pivot ensures every corner in front of door completely covered. With 5000mAh rechargeable battery, Pivot is 100% wire-free, waterproof and easy to install.

Stay close with what you care

With Cloud service, you will have access to what you care as long as Internet

is available . You can record daily or motion videos on Cloud and play back anytime anywhere.

Specifications

Video Doorbell

1/2.8” Progressive CMOS 3MP (2048 x 1536)

Night Vision: 5m(16.5ft) Distance

2.3 mm Fixed Lens, 30°Pan

Field of View : 125°(H), 98°(D), 166°(D)

5000mAh Rechargeable Battery

Video & Audio

Video Compression : H.265 Up to 15fps Frame Rate Two-way Talk

8x Digital Zoom

Notice Management

Doorbell Call Notification PIR Motion Detection Loitering Detection

Auto Power Saving Mode

Network

Wi-Fi:IEEE802.11b/g/n, 2.4GHz

Chime works as the Wi-Fi extender for the Doorbell imou App: iOS, Android

Auxiliary Interface

Video Doorbell:

Built-in Mic & Speaker Power On / Off Button

Chime:

Micro SD Card Slot (up to 512GB) Built-in Speaker

Reset Button

General

Video Doorbell:

Charging Power: DC 5V 1A, Type-C Port

Optional Hardwired Power Supply (8~24VAC, ≥5VA)

Power Consumption: up to W

Working Environment: -30°C~+50°C, Less Than 95%RH Charging Temperature: 0°C~+45°C

Dimensions: 55 × 45 × 15mm( 2.16× 1.77 × 0.59inch) Weight: 237.5g (lb)

CE

Chime:

AC Power Supply:

Power Consumption: up to W

Working Environment: -10°C~+45°C, Less Than 95%RH Dimensions: 65 × 24 × 95mm( 2.56× 0.95 × 3.74inch) Weight: 79g (lb)

CE

What’s in the box

• 1x Doorbell
• 1x Quick Start Guide
• 1x Surface Mounting Bracket
• 1x USB Charging Cable
• 3x Wire Nuts
• 2x 3M Glue
• 1x Chime Plug
• 1x Screw Package
• 1x Pin
• 1x Installation Position Map
• 2x Extension Wire
• 1x Jumper Wire
• 1x Chime
