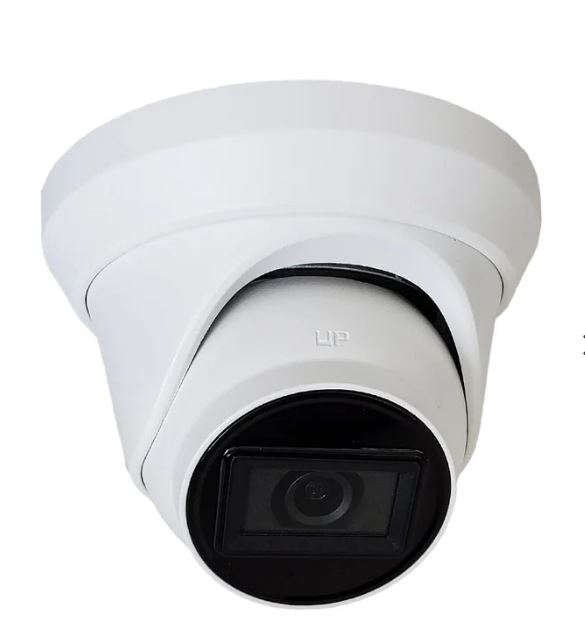

8MP Turret TVI CVI AHD CVBS Camera
Overview
This 8MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with a 2.8mm or 3.6mm fixed lens which delivers a 102.2° or 79° horizontal field of view respectively. Its maximum resolution is 3840 x 2160p at 15 fps. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.
Features
- 8MP High Performance CMOS Sensor
- EXIR 2.0
- 60m IR
- 0.01 Lux/F1.2
- 12 VDC
- Smart IR
- Up the Coax (UTC-C)
- DWDR
- IP67
- 2.8mm/3.6mm Lens
Application
Specifications
| Camera | |
|---|---|
| Image Sensor | 8.29 MP progressive scan CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N |
| Resolution | 3840 (H) x 2160 (V) |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed lens 3.6mm fixed lens |
| Horizontal Field of View | 102.2° (2.8mm) 79° (3.6mm) |
| Lens Mount | M16 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| DWDR | 105 dB |
| Menu | |
| AGC | Supported |
| Day and Night Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MANUAL |
| Backlight Compensation | Supported |
| Digital Wide Dynamic Range | Supported |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Maximum 5.3 W |
| Ingress Protection | IP67 |
| Material | Enclosure: Plastic Main Body: Metal |
| IR Range | Up to 196 ft (60 m) |
| Communication | Up the coax, Protocol: UTC-C (TVI output) |
| Dimensions | ⌀ 4.32″ x 3.6″ (⌀ 109.82 mm x 91.03 mm) |
| Weight | Approximately 0.71 lbs (320 g) |
| Approvals | |
| c(UL)us | Compliant |
| CE | Compliant |
| FCC | Compliant |
| ONVIF | Compliant |
| Weight | 0.4 kg |
|---|---|
| Dimensions | 25 × 15 × 8 cm |
| Title | Default Title |
