Hikvision DS-2CE72HFT-F28 5MP ColorVu

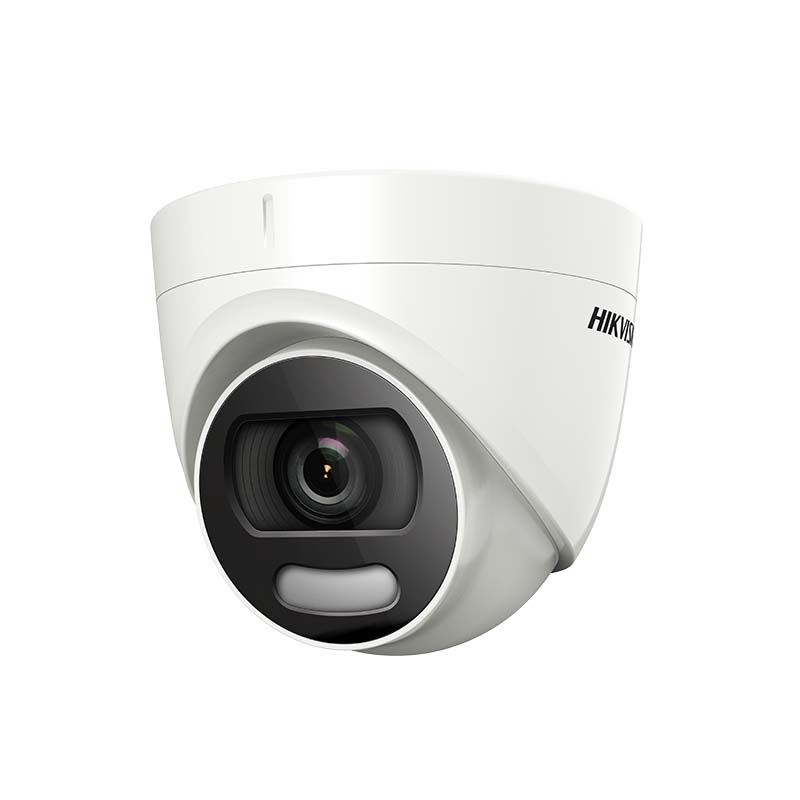

Hikvision DS-2CE72HFT-F28 5MP ColorVu 2.8mm Fixed Turret Camera
-5 MP full time color turret camera
-24/7 full color imaging
-2.8 mm fixed focal lens
-Warm supplemental light with 20 m range
-Clear imaging even against strong back lighting due to 130 dB true WDR technology
-3D DNR technology delivers clean and sharp images
-Water and dust resistant (IP67)
-4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time |
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | Color |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8° |
| Lens Mount | M16 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 20m |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart Light, AGC |
| Frame Rate |
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Color |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | BLC, HLC |
| White Balance | Auto/Manual |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Main body: Metal, Enclosure: Plastic |
| Dimension | Φ 109.82 mm × 85.56 mm (4.32″ × 3.37″) |
| Approx. 350 g ( 0.77 lb.) | |
| Operating Condition | -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power |
12 VDC ± 25%, Max. 3.5 W *You are recommended to use one power adapter to supply the power for one camera. |
| Approval | |
| Protection | IP67 |
