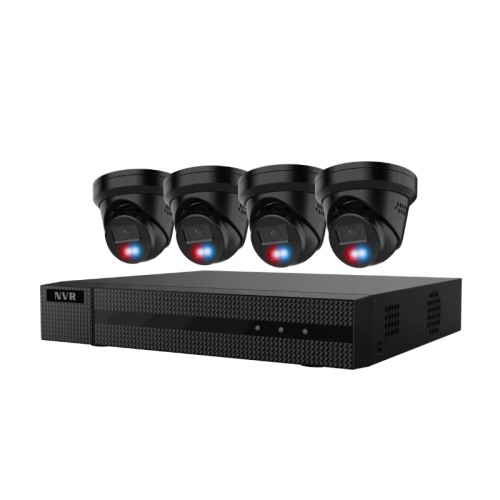

Name: AI Guarding IP-KIT4642-BR-BLACK 4 Channel 8MP NVR
Brand: AI Gearding
SKU: 8610
Availability: InStock

AI Guarding IP-KIT4642-BR-BLACK 4 Channel 8MP NVR

AI Guarding IP-KIT4642-BR-BLACK 4 Channel 8MP NVR with 2TB HDD and 4pcs Active Deterrence 6MP Smart Hybrid Light Fixed Black Turret Camera Kit

One 4-channel PoE NVR with decoding up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p

– Four 6MP Smart Hybrid Light fixed turret network cameras with efficient H.265+ compression technology

– 2TB Pre-installed HDD

– 1 network cable for NVR

– Support audio and siren alarm with red and blue flashing light

Number of Channels	4
Human/Vehicle Analysis	1ch
Resolution	Up to 8 MP
Two-Way Audio	1-Channel, RCA (2 V p-p, 1 Kilohm)
Bandwidth	Incoming: 40 Mb/s Outgoing: 80 Mb/s
Recording Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI Output Resolution	1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
VGA Output Resolution	1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Audio Output	1-Channel, RCA (Linear, 1 Kilohm)
Decoding Formats	H.265+, H.265, H.264+, H.264
Playback Resolution	8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Remote Connection	32
Synchronous Playback	4 Channels
Decoding Capability	1 Channel at 8 MP 3 Channel at 4 MP 4 Channels at 1080p
Network Protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
SATA	1 x SATA Interface (Up to 8 TB capacity)
Drive Bays	1
HDD Capacity	8 TB
HDD Included	2TB
Network Interface	1 x RJ45 100M Self-Adaptive Ethernet Port
USB	2 x USB 2.0
PoE Interface	4 x 100M RJ45 Self-Adaptive Ethernet Ports
PoE Power	≤50 W
PoE Standard	IEEE 802.3af/at
Power Supply	48 VDC 1.35A
Power	<65 W
Power Consumption	≤10 W (Without HDD & Enabling PoE)
Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 90%
Rack Units	1 RU
Dimensions	10.2 x 8.4 x 1.9″ / 265 x 240 x 48 mm
Weight	2.2 lb / ≤1 kg (Without HDD)

Camera

Image Sensor	1/2.4″, 6 MP Progressive Scan CMOS
Minimum Illumination	Color: 0.005 Lux (f/1.6 with AGC ON) B&W: 0 Lux
Shutter Speed	1/100,000 to 1/3 Seconds
Day/Night	IR Cut Filter
Supplement Light Type	IR,White Light, Red and Blue Light (Flashing Light)
Digital Noise Reduction	3D-DNR
WDR	Digital Wide Dynamic Range
3-Axis Adjustment	Horizontal: 0 to 360° Vertical: 0 to 75° Rotation: 0 to 360°
Lens	2.8mm
Lens Mount	M12
Aperture	f/1.6
Field of View	Horizontal: 105° Vertical: 55° Diagonal: 127°
IR Range	30 m
IR Wavelength	850 nm
Video Compression	Main Stream: H.265+, H.265, H.264+, H.264 Sub-Stream: H.265/H.264/MJPEG
H.264 Profile	Baseline Profile,Main Profile,High Profile
Video Bit Rate	32 kb/s to 16 Mb/s
Region of Interest	One Fixed Region for Main Stream and Sub-Stream
Maximum Resolution	3200 x 1800
Frame Rate	Main Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 Sub-Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Image Enhancement	BLC, HLC, 3D-DNR
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switching	Auto, Scheduled
Network Storage	Supports NAS (NFS, SMB/CIFS)
Alarm Triggers	Motion Detection, Video Tampering Alarm, Illegal Login
Built-in Speaker	Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Built-in Microphone	Yes,1 built-in microphone
Audio Type	Mono sound
Audio Sampling Rate	8 kHz/16 kHz
Environment Noise Filtering	Yes
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
General Functions	Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark
API	Open Network Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Simultaneous Live View	Up to 6 Channels
User/Host Level	Up to 32 Users at 3 Host Levels (Admin, Operator, User)
Client APP	iVMS-4200, HiLookVision
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Linkage	Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
Supported Web Browsers	Plug-in required live view: IE 10, IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
Communication Interface	1 x RJ45 100M Self-Adaptive Ethernet Port
Operating Temperature	-22 to 122°F / -30 to 60°C
Operating Temperature	0 to 95% (Non-Condensing)
Power Supply	12 VDC ≤25%, PoE (802.3af, Class 3)
Power Consumption and Current Draw	12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
IP Rating	IP67 IEC 60529-2013
Material of Construction	Metal and Plastic
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Dimensions	4.3 x 3.7″ / 110 x 93.2 mm
Weight	0.8 lb / 360 g
