Name: 48V 0.5A POE Injector Power Over Ethernet (POE) Adapter
SKU: 9271
Availability: InStock

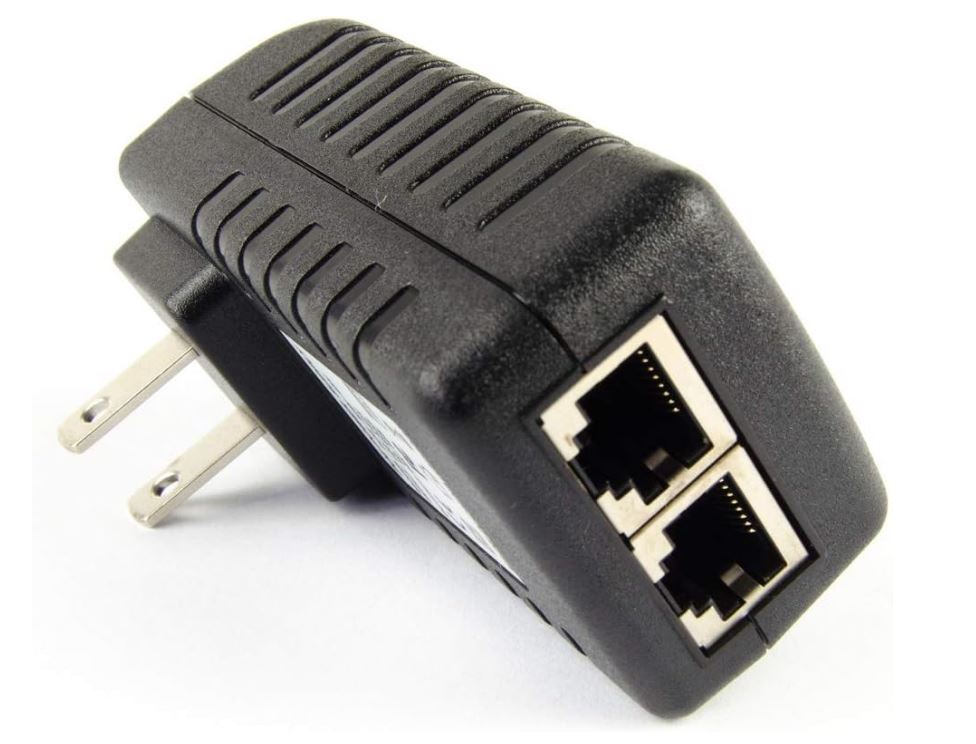

48V 0.5A POE Injector Power Over Ethernet (POE) Adapter

$37.99

lot-of-4-48v-0-5a-wall-plug-poe-injector-ethernet-adapter-camera-power-supply

Compare

48V 0.5A POE Injector Power Over Ethernet (POE) Adapter

Lot of 4 – 48V-0.5A Wall Plug POE Injector Ethernet Adapter/Camera Power Supply

Description:

POE (Power Over Ethernet) refers to the existing Ethernet Cat.5 cabling infrastructure don’t do any changes, transmit data signals for some based on IP terminal (e.g.,IP telephone, wireless LAN Access Point, webcams, etc.) ,at the same time also provide such equipment with technology of DC Power supply.

Features:

Cost Saving, No Power Cabling for WLAN AP, IP Phone and any supported IEEE802.3af Powered Device

Meeting IEEE 802.3af standards and more sufficiently is able to provide power to PD devices

Small lightweight plastic enclosure

Built-in universal 100-240V AC switching power supply

Standard RJ45 Cat.5 Ethernet data input and output

Easy, convenient, and simple to use

Specifications:

Voltage Input: AC 100-240V 50/60Hz

Voltage Output: DC 48V 0.5A

Dimension: Approx.8.2 X 4.5 X 3.5cm/3.23″ X 1.77″ X 1.38″(L X W X H)

CAT5 Ethernet Pin Usage: Data: 1,2,3,6 Power: +(4,5),-(7,8)

Compatible with: all 802.3af PoE power device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More…..

Plug Type: US Plug

Standards: 802.3af

Package Included:

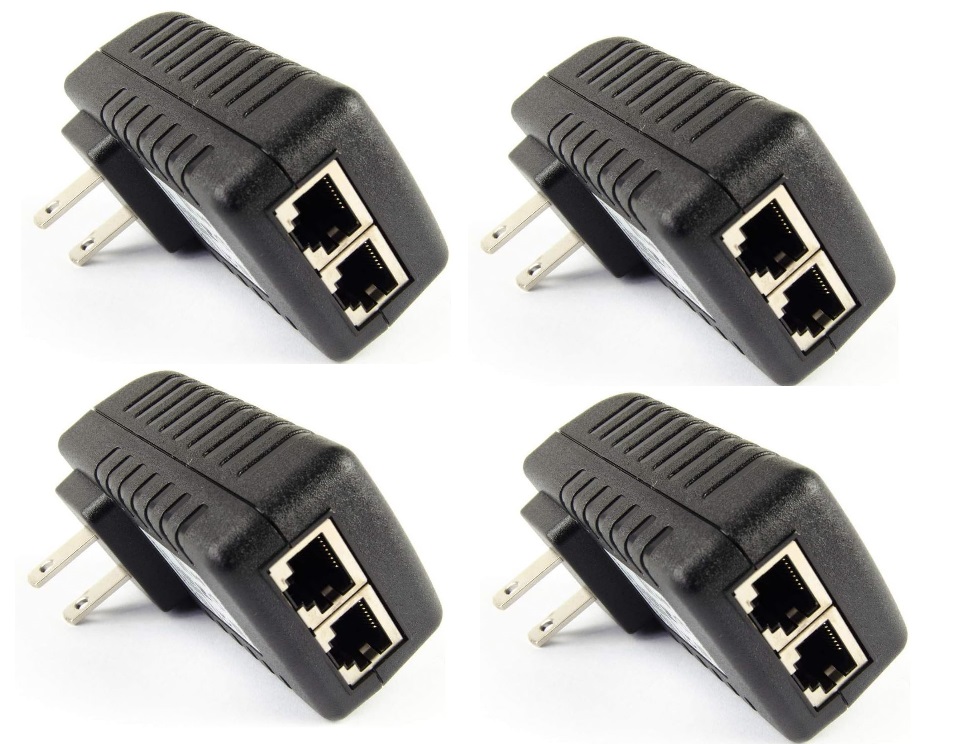

4x 48V 0.5A PoE Injector Power Over Ethernet Adapter

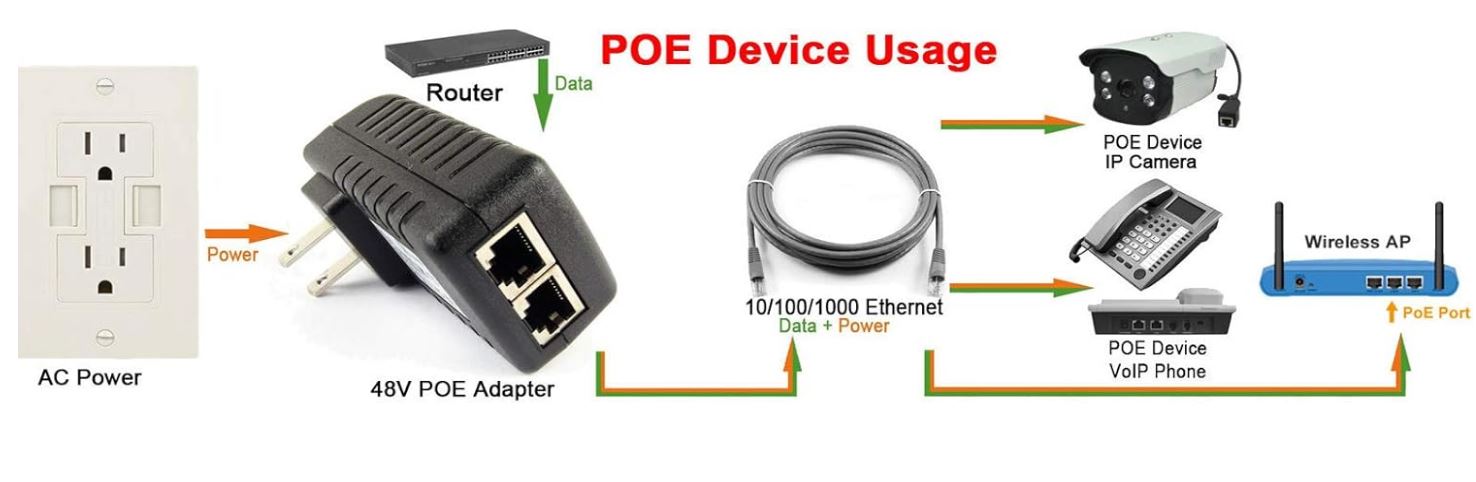

This injector lets you power 802.3af compatible devices, with no additional adapter needed. Just plug the network cable(not included) into your network switch and into the “Data In” port, then plug the cable to your device into the “PoE” port with your existing network cable
This Adapter support 10/100/1000Mbps gigabit ethernet connection, RJ45 PoE port using 4,5,7,8 pin as power transfer, Please do not connect any device that does not support the “PoE” port, this will damage your device
This is an 802.3af compatible device, but it does NOT include the 802.3af/802.3at compliant detection feature. It supplies power NO MATTER WHAT, so don’t plug the “PoE” side into anything that isn’t ready for it
Compatible all 802.3af PoE power device as IP Phone, IP camera, Gateway , Switch, or More…..
