Name: Fanvil I64 IP Video Door Phone
Brand: Fanvil
SKU: 8640
Availability: InStock

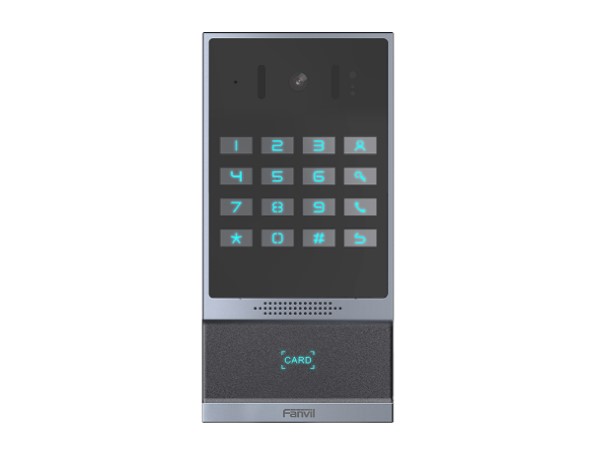

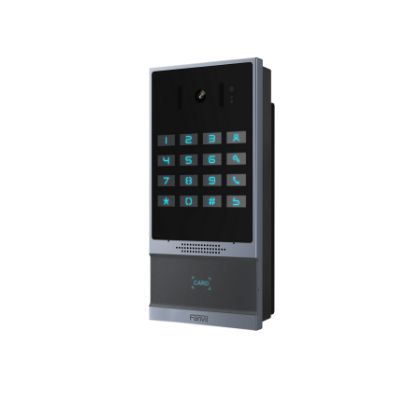

Fanvil I64 IP Video Door Phone

fanvil-i64-ip-video-door-phone

Compare

Fanvil I64 IP Video Door Phone

Fanvil i64 is compatible with SIP and ONVIF protocols
Fanvil i64 support to open the door with password, RFID/IC cards, NFC, indoor switch, remote DTMF, Timed open door
Fanvil i64 has aluminum alloy design and a numeric keypad
Fanvil i64 built-in maximum 128GB capacity TF card slot for image storage HD voice speech quality

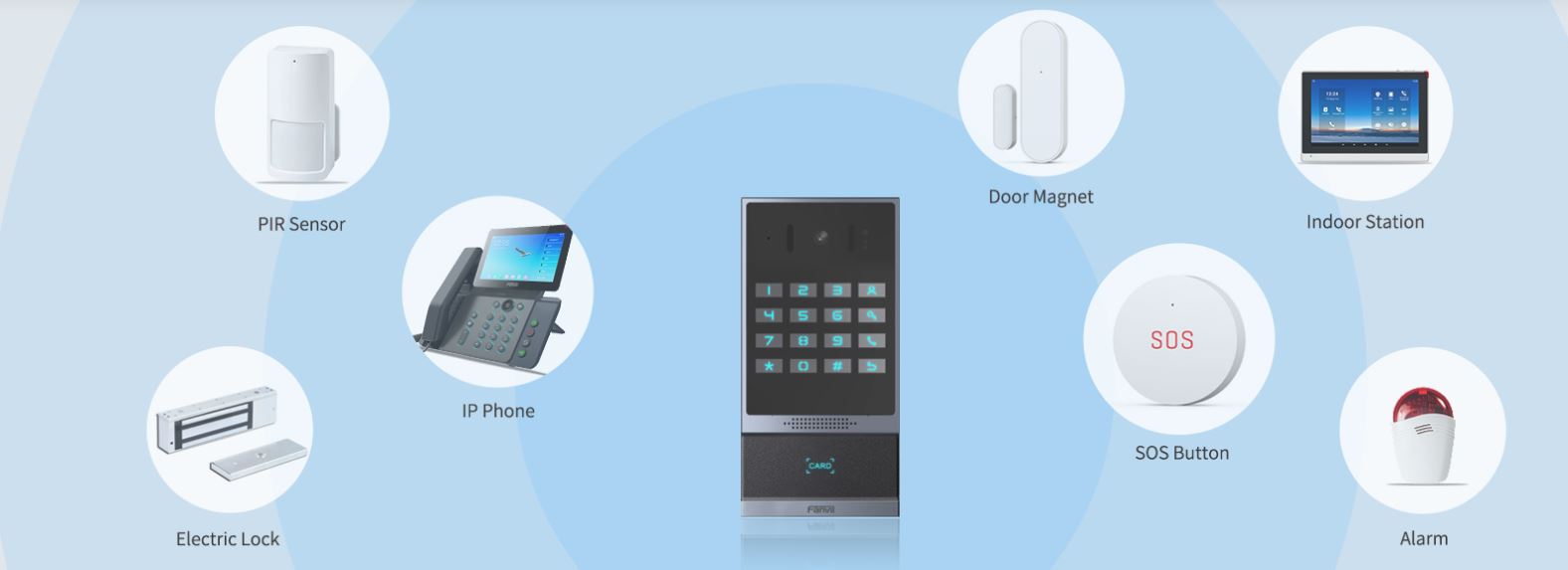

Fanvil i64 built-in 3 short-in detect ports and 2 short-out control ports, can be integrated with induction loop antenna

Generic
 2 SIP lines
 Speed dial
 IP address announcement in English
 Programmable DSS key
 Switch signal input and output
 Support TF card
 PoE enabled
 Open the door operation: DTMF, password, RFID card, push
button, WEB page, 3rd party API
 Remote access list, RFID cards (support 10,000)
 Door open records (support 200,000)
Device Functions
 Auto–answering
 Programmable DSS keys
 Network time synchronization
 Time Plan (task management)
 Dynamic multicast function
 HTTP API
 Action URL / Active URI
Call Functions
 Call out / answer / reject
 Call waiting
 Intercom, Multicast
 Speed dial
 Anonymous call (Hide caller ID)
Audio
 Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726–32K
 Wideband codec: G.722, Opus
 Full–duplex hands–free speakerphone with AEC
 DTMF: In–band, Out–of–Band (RFC2833/ SIP INFO)
Video
 Sensor: 1/2.9” color CMOS
 Pixels: 2 Mega
 Video coding: H.264
 Compatible to 3rd–Party–Video platform, e.g. NVRs
 Motion detection
 Resolution:
 Main stream 1080P@30fps (up to 2 channels)
 Sub stream VGA@30fps (up to 3 channels)
 High intensity IR LEDs for picture lighting during dark hours with
internal light sensor
 Viewing angle:
 Diagonal: 141°
 Horizontal: 120°
 Vertical: 60°
Network
 Physical: 10/100 Mbps Ethernet
 IP mode:IPv4/IPv6/IPv4&IPv6
 IP configuration: Static IP / DHCP / PPPoE
 VPN: L2TP / OpenVPN
 VLAN

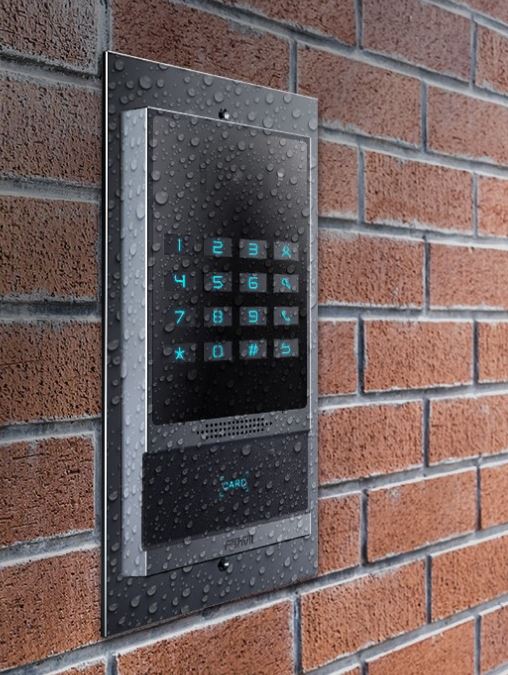

The i64 SIP doorphone is designed for outdoor scenes with high reliability, HD
Audio&Video. It combines an anti–vandal solution with an elegant design, offers high
durability to guarantees the highest coverage on the market according to the IP66 and
IK07 standards.It combines security, video doorphone and broadcasting function,
offers the best communication solution for users.
Highlights
□√ Built–in HD camera with night–vision feature, adopt H.264 codec
□√ High durability guarantees the highest coverage on the market according to the
IP66 and IK07 standards.
□√ Fitted with a tamper switch that detects unauthorized opening of the device itself.
□√ HD voice speech quality with built–in 2W speaker and Acoustic Echo Canceller
□√ Built–in 3 short–in detect port and 2 short–out control port
□√ Built–in TF card slot for data storage
□√ Compatible with ONVIF standard for easy integration with your existing CCTV or
surveillance system.
□√ Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix,
Avaya etc.
