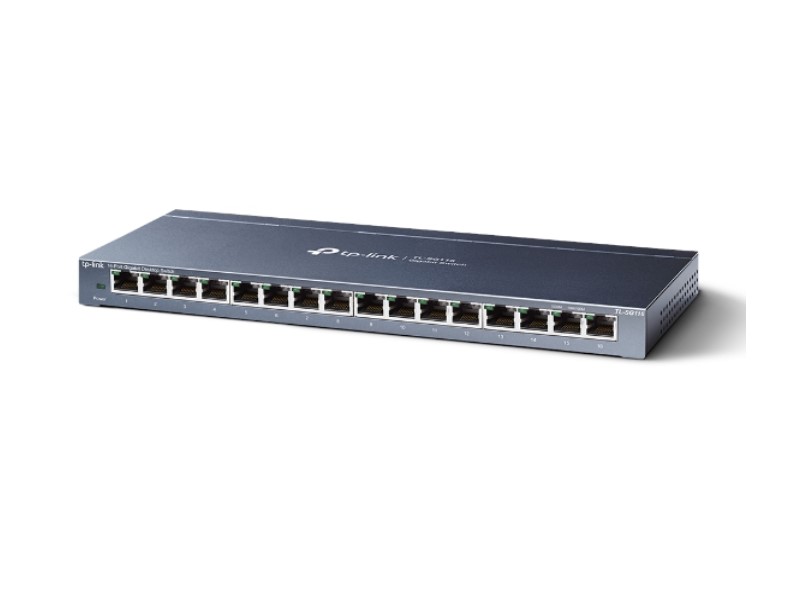

TP-LINK TL-SG116 16 Port Gigabit Ethernet Network Switch

TP-LINK TL-SG116 16 Port Gigabit Ethernet Network Switch

• 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• *Green Ethernet technology saves power consumption
• *IEEE 802.3x flow control provides reliable data transfer
• *Steel housing, desktop or wall-mounting design
• *Support 802.1p/DSCP QoS and IGMP Snooping function
• *Plug and play, with no configuration needed

• HARDWARE FEATURES

  Standards and Protocols	IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
  Interface	16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
  Fan Quantity	Fanless
  Power Consumption	Maximum: 10.0W
  External Power Supply	External Power Adapter (Output: 12VDC / 1.0A)
  LED Indicator	System Power Link/Act indicators per port built into each RJ-45 port
  Dimensions ( W x D x H )	11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)



  PERFORMANCE

  Packet Forwarding Rate	23.8Mpps
  MAC Address Table	8K
  Packet Buffer Memory	4.1Mb
  Jumbo Frame	10KB
