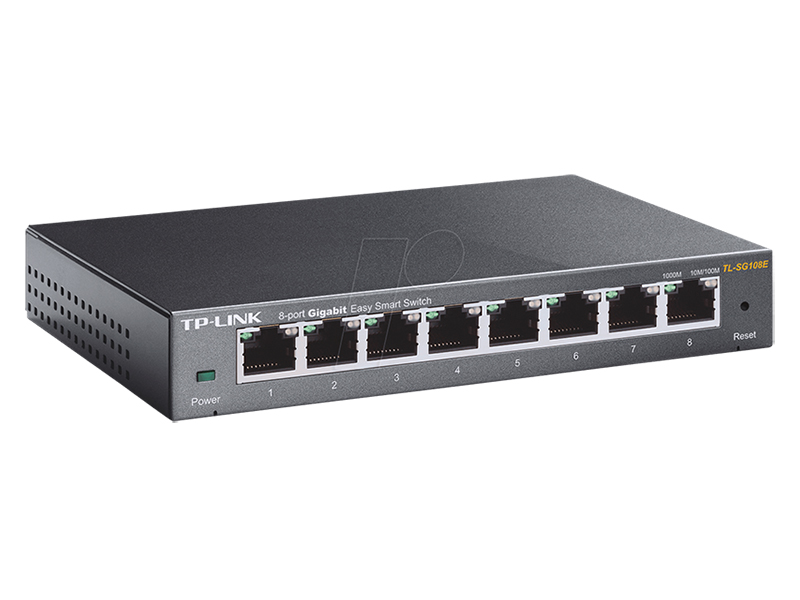

TP-Link 8-Port Gigabit Easy Smart Switch TL-SG108E
$199.99
TP-Link 8-Port Gigabit Easy Smart Switch TL-SG108E
TP-Link 8-Port Gigabit Easy Smart Switch TL-SG108E
8 10/100/1000Mbps ports provide instant large file transfers
– Innovative energy-efficient technology reduces power consumption by up to 80%
– IEEE 802.3x flow control provides reliable data transfers
– 16K Jumbo frame improves performance of large data transfers
– Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
– Port and tag-based QoS enable smooth latency-sensitive traffic
– Abundant VLAN features improve network security via traffic segmentation
– IGMP Snooping optimizes multicast applications
– Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Dimensions (W X D X H) | 6.2*4.0*1.0 in. (158*101*25 mm) |
| Fan Quantity | Fanless |
| Power Consumption | Maximum: 5.46W (220V/50Hz) |
| Power Supply | 100-240VAC, 50/60Hz |
| PERFORMANCE | |
|---|---|
| MAC Address Table | 8K |
| Packet Buffer Memory | 2Mb |
| Packet Forwarding Rate | 11.9Mpps |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support Port Based/802.1p Based priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG108E Power Cord Installation Guide Resource CD Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Weight | 1.1 kg |
|---|---|
| Dimensions | 25 × 15 × 20 cm |
| Title | Default Title |
