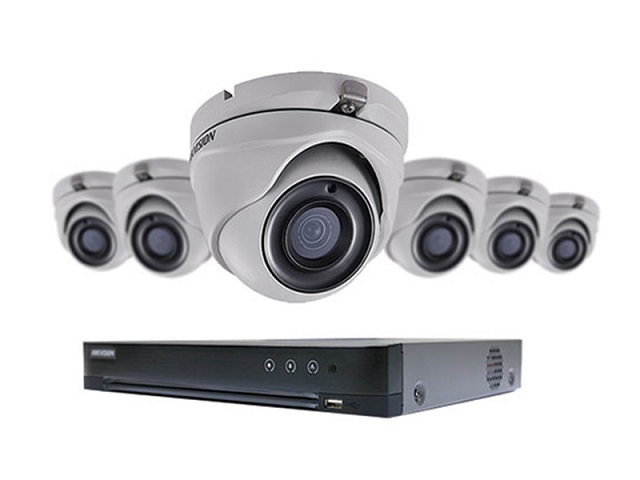

Name: DVR DVS Camera system 8 Channels TVI KIT with 8 5MP cameras
Brand: Hikvision
SKU: 8858
Availability: InStock

8CH TVI KIT
1 x TVI HD 5MP 8 Channel DVR SC-A326-4TVI
1 x SC-2TB-PUR (2TB HDD)
8 x NSI-5MLITE-FCB (24×7 COLOR)

HDD – 2Tb

* H.265+/H.265/H.264+/H.264 Video Compression

* Support HDCVI, HDTVI ,AHD, and Analog Cameras with adaptive access

* 2-Ch, 6MP IP Cameras input , 8-Ch 5MP TVI input

* Full Channel@ 1080P resolution real-time recording

* Long transmission distance over coax cable

* Support up to 8 Ch, synchronous playback

This DVR can support a maximum of 8 analog channels or a maximum of 12 IP channels for a total of 12 cameras in any combination. The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports.

Features

Support H.265/H.264 video formats
Support audio over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
8-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
Long transmission distance over coaxial cable

Specifications

Physical Characteristics
Dimensions	10.2″ x 9.4″ x 1.8″ (260 x 240 x 46mm)
Operating Temperature	-10°C to 55°C (14°F to 131°F); Humidity ≤ 90% RH (non-condensing)
Power Supply	12V DC
Power Consumption	≤ 8 W(without HDD)
Video and Audio Input
Analog Video Input	8-channel, BNC
IP Video Input	4-channel (only IP up to 12-channel), each channel up to 4K
Supported Analog Camera Types	Support AHD input: 8MP@8fps 5MP@20fps 4MP@30fps 3MP@30fps(channel1-channel2) 1080P@30fps 720P@60fps Support TVI input: 8MP@8fps 5MP@20fps 4MP@30fps 3MP@20fps(channel1-channel2) 1080P@30fps 720P@60fps Support CVI input: 8MP@8fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-channel, RCA
Two-Way Audio	1-channel, RCA
Video and Audio Output
CVBS Output	1-channel, BNC
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI Output	3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output	1-channel, RCA
Synchronous Playback	8-channel
Network
Incoming Bandwidth	56Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP/IP, P2P,UPnP, NTP, DHCP, PPPoE
Encoding
Recording Resolution	8MP Lite/5MP Lite/4MP Lite/1080P/960P/720P/960H/D1/4CIF/CIF
Recording Frame Rate	Main stream: 8MP Lite@8fps 5MP Lite@12fps 4MP Lite@15fps 3MP@15fps(channel1-channel2) 1080P@15fps 720P@30fps Sub stream: D1@12fps(Max)
Hard Disk
SATA	1 SATA Interface
Capacity	Up to 6TB capacity for each HDD
Smart
VCA Detection	2-channel intrusion detection and cross line detection on analog camera
VCA Search	Behavior search on analog camera
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Serial Interface	1 x RS485
Approvals
RoHS	Compliant
c(UL)us	Yes
FCC	Yes
CE	Compliant
Packaging Information
Package Contents	1 – DVR 1 – Hard Disk Data Cable 1 – Hard Disk Power Cable 1 – Power Adapter 4 – Screws 1 – Mouse 1 – User Manual
