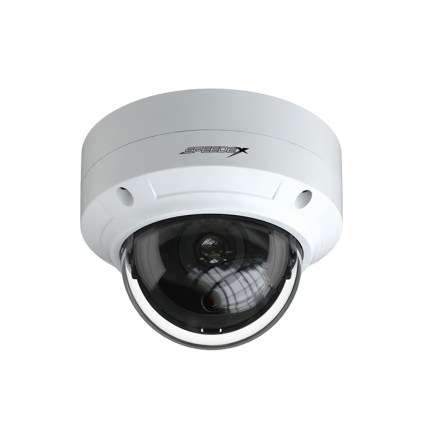

Speedex 5MP, HD Turret/Dome Camera 3.6MM
speedex-t7554as2-5mp-hd-turret-dome-camera-3-6mm-lens-white
 Speedex 5MP, HD Turret/Dome Camera 3.6MMÂ
Speedex T7554AS2 5MP, HD Turret/Dome Camera 3.6MM Lens-White
5MP real-time image, high resolution, true color
-AHD / TVI / CVI standard and lossless video output
-Up to 1500 TVL resolution
-CMOS progressive scan, perfectly capturing the moving object
-DWDR
-Support OSD menu
-High speed, long distance and real time transmission
-LED can be turned on or off automatically
-24/7 full color image
-10 ~ 20m LED view distance
-IP67 ingress protection
-Support COC
-Support coaxial audio transmission (Temporarily only valid in TVI signal mode)
| Model | TD-7554AS2S |
|
 Camera |
|
| Image Sensor | 1 / 2.5 “CMOS |
| Resolution | 5MP |
| Image Size | 2560 x 1936 |
| Video Output | AHD / TVI /CVI |
| Audio | 1CH built-in MIC |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto |
| LED Distance | 10 ~20 m |
| Frame Rate | 5MP@20fps/4MP@30fps |
| Min. Illumination | 0 lux ( LED ON) |
| Lens | 3.6 mm |
| Lens Mount | M12 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP 67 |
|
 Functions |
|
| Function Control | OSD ( COC Control ) |
| Smart LED | Manual or Auto mode |
| Digital WDR | Yes |
| Digital NR | Yes, 2D DNR |
| Global Exposure | Yes |
| Central Exposure | No |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Front Light Compensation | No |
| Contrast | Yes |
| Sharpness | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
|
 Others |
|
| Power Supply | DC12V ( ± 15% ) |
| Power Consumption | LED OFF : < 1W; LED ON : < 3W |
| Working Environment | – 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
| Dimensions ( mm ) | Ф 94.6 x 82.8 |
| Weight ( net ) | Approx. 0.39KG |
| Weight | 800 kg |
|---|---|
| Title | Default Title |
