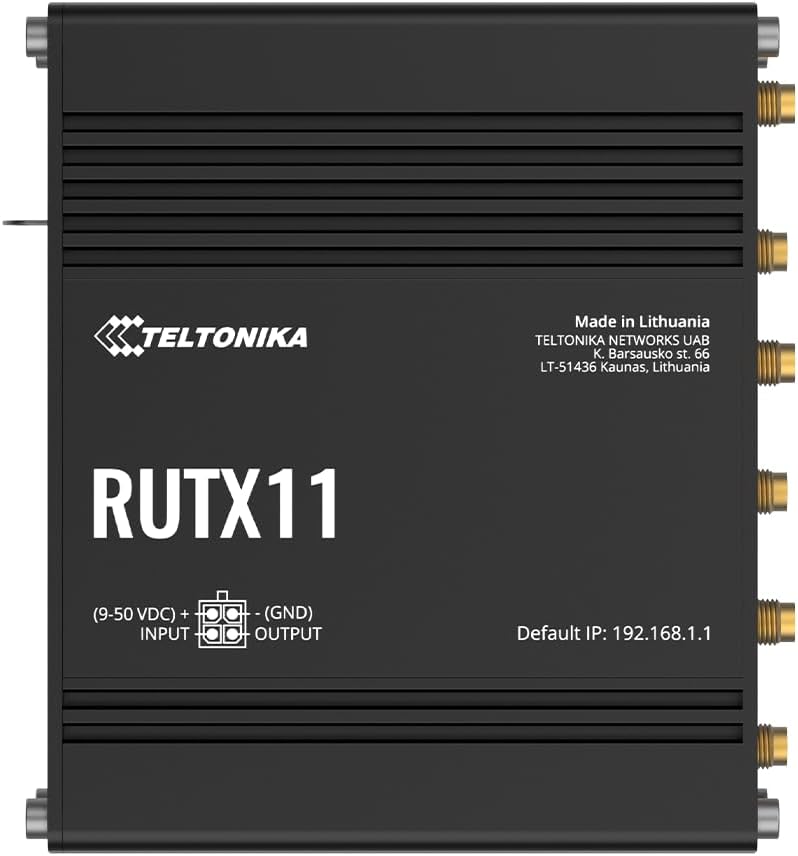

Teltonika RUTX11 Industrial Cellular Router

Teltonika RUTX11 Industrial Cellular Router

Teltonika RUTX11 4G/CAT6 Mission Critical Gateway Industrial Cellular Router

A High Speed LTE Gateway that is highly rugged for any environment offering multiple functionalities such as; Dual SIM redundancy, Wi-Fi for up to 150 users, and GPS. Acting as a full networking router the RUTX11 can be a prime internet connection or integrate as a backup/failover. 4 Ethernet ports allow multiple appliance connection as LAN or WAN. The compact design makes it perfect for vehicles or stationary deployments. External SMA antenna connections allow any type of install/orientation indoors or outdoors.

Mobile Module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
•Wireless Mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
•Wi-Fi Security: WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
•Wi-Fi Users: Up to 150 simultaneous connections
•Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
•IOT Platform Compatibility: Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
•Ethernet Ports: 4 x RJ45 ports, 10/100/1000 Mbps
•CPU: Quad-core ARM Cortex A7, 717 MHz
•RAM: 256 MB, DDR3
•FLASH Storage: 256 MB, SPI Flash
•Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
•Operating Environment: Temperature -40°C to 75°C; Humidity 10% to 90% non-condensing
