Name: DVR DVS Camera system 16 Channels TVI KIT with 16-5MP cameras
Brand: Hikvision
SKU: 8841
Availability: InStock

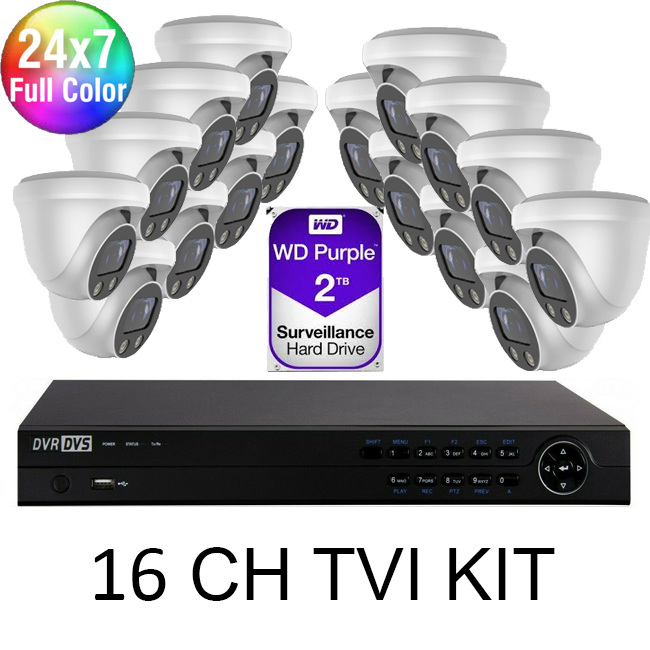

DVR DVS Camera system 16 Channels TVI KIT with 16-5MP cameras

16CH TVI KIT

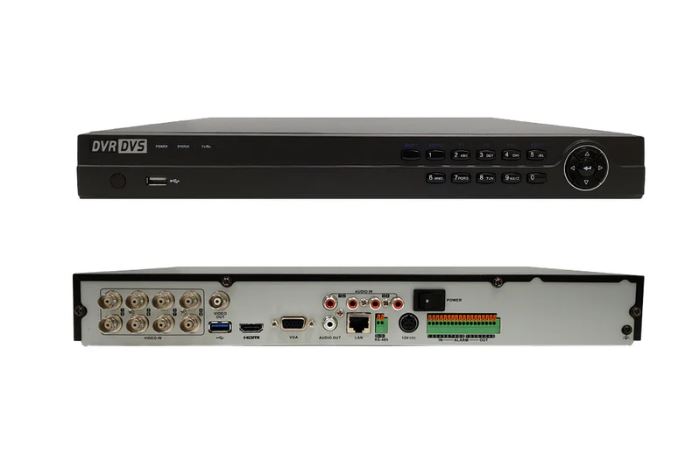

1 x SC-A326-16TVI

16x -5M LITE-T (DAY/NIGHT TVI TURRETS-WHITE)

2TB WD Purple Surveillance Internal Hard Drive HDD – included

* H.265+/H.265/H.264+/H.264 Video Compression

* Support HDCVI, HDTVI ,AHD, and Analog Cameras with adaptive access

* 16-Ch 5MP TVI input

* Full Channel@ 1080P resolution real-time recording

* Long transmission distance over coax cable

* Support up to 16 Ch, synchronous playback

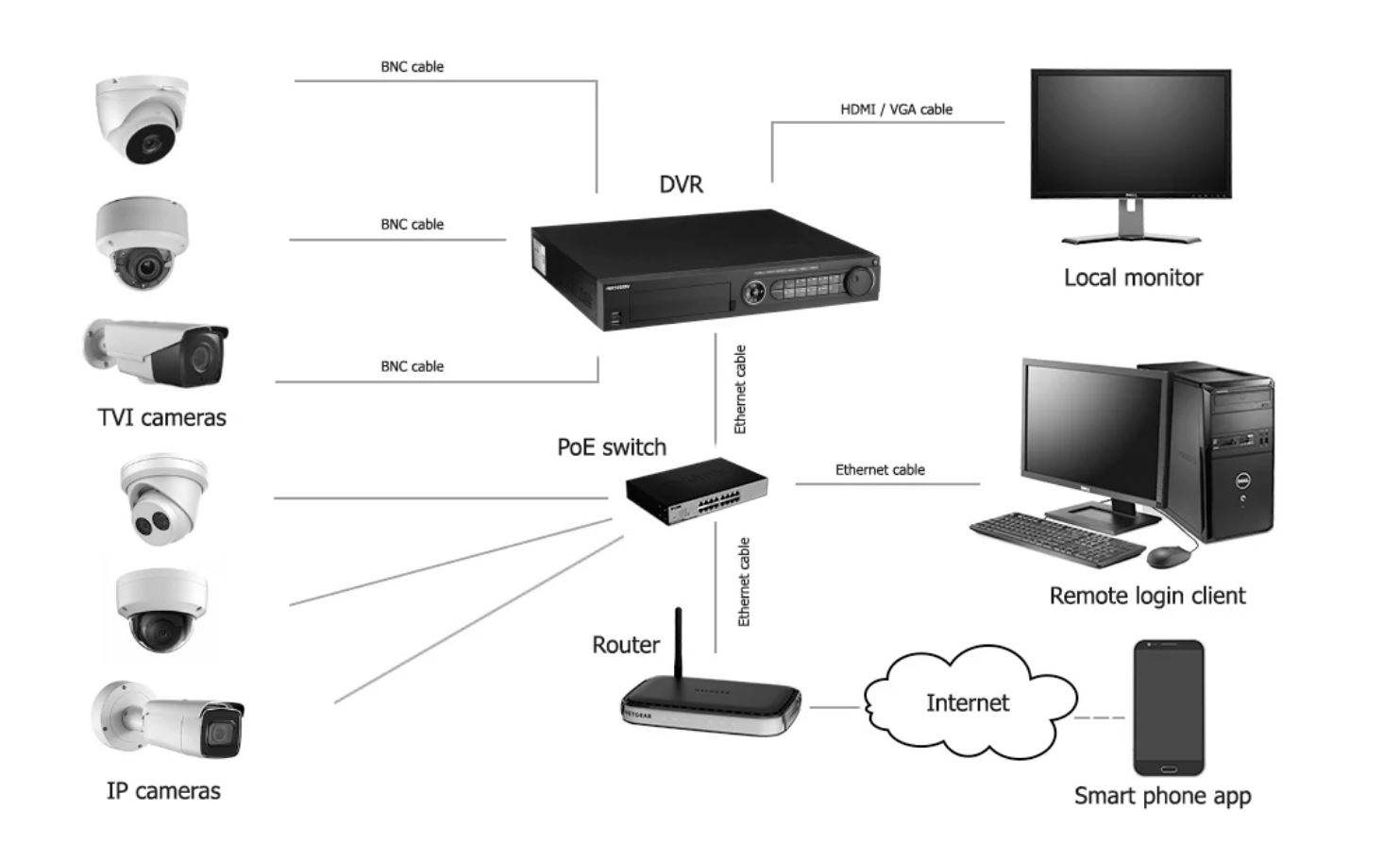

This DVR can support a maximum of 8 analog channels or a maximum of 16 IP channels for a total of 16 cameras in any combination (when Enhanced IP Mode is enabled). The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports. (Hard drive sold separately).

DVR DVS Camera system 16 Channels TVI KIT with 16-5MP cameras

Features

Support H.265 Pro+/H.265 Pro/H.265 video compression
Support HDTVI/AHD/CVI/CVBS/IP video input
Maximum 8 analog or 16 IP camera inputs – Maximum 16 cameras (up to 8 MP)
Maximum 800m for 1080p and 1200m for 720p HDTVI signal transmission
Maximum 32/64/128 Mbps incoming bandwidth and output bandwidth limit configurable
Up to 10 TB capacity per HDD

Physical Characteristics
Dimensions	’‚¬ 12.4″ x 9.5″ x 1.8″ (’‚¬ 315 x 242 x 45mm)
Operating Temperature	-10°C to 55°C (14°F to 131°F); Humidity 10% to 90%
Power Supply	12V DC
Power Consumption	€°¤ 20W(without hard disks)
Video and Audio
HDMI/VGA Output	HDMI: 1-channel, 4K (3840 — 2160)/30Hz, 2K (2560 — 1440)/60Hz, 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz VGA: 1-channel, 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz
CVBS Output	1-channel, BNC (1.0 Vp-p, 75Ω), PAL Resolution: 704 x 576 NTSC Resolution: 704 x 480
Recording Resolution	8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream: 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Compression	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Analog Video Input	4-channel, BNC interface (1.0Vp-p. 75Ω) connection, Supporting Coaxiton Connection
Supported Camera Types	Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input: PAL/NTSC
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Video Bit Rate	32 Kbps-10 Mbps
Stream Type	Video / Video & Audio
Audio Input	4-channel, RCA (Vp-p, 1 KΩ)
Audio Output	1-channel, RCA (Linear, 1�€)
Audio Compression	G.711u
Audio Input Interface	4-channel, RCA (2.0 Vp-p, 1 �€)
Audio Bit Rate	64kbps
Two-way Audio	1-channel, RCA (2.0 Vp-p 1 �€) – Using the 1st channel of audio input
Dual Stream	Support
Synchronous Playback	8-channel
Network Management
Remote Connections	64
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, Guarding Vision, NTP, SADP, NFS, iSCSI, UPnP€ž¢, HTTPS, ONVIF
Hard Disk Driver
Interface Type	2 SATA Interface
Capacity	Up to 10TB capacity for each disk
External Interface
Network Interface	1; RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB Interface	Front panel: 1 x USB 2.0 Rear panel: 1 x USB 3.0
Serial Interface	1 standard RS-485 serial interface, half-duplex
Alarm In/Out	8/4
Approvals
RoHS	Compliant
c(UL)us	Yes
FCC	Yes
CE	Compliant
Packaging Information
Package Quantity	1
Product Weight	3.9 lbs [1.78 kg]
