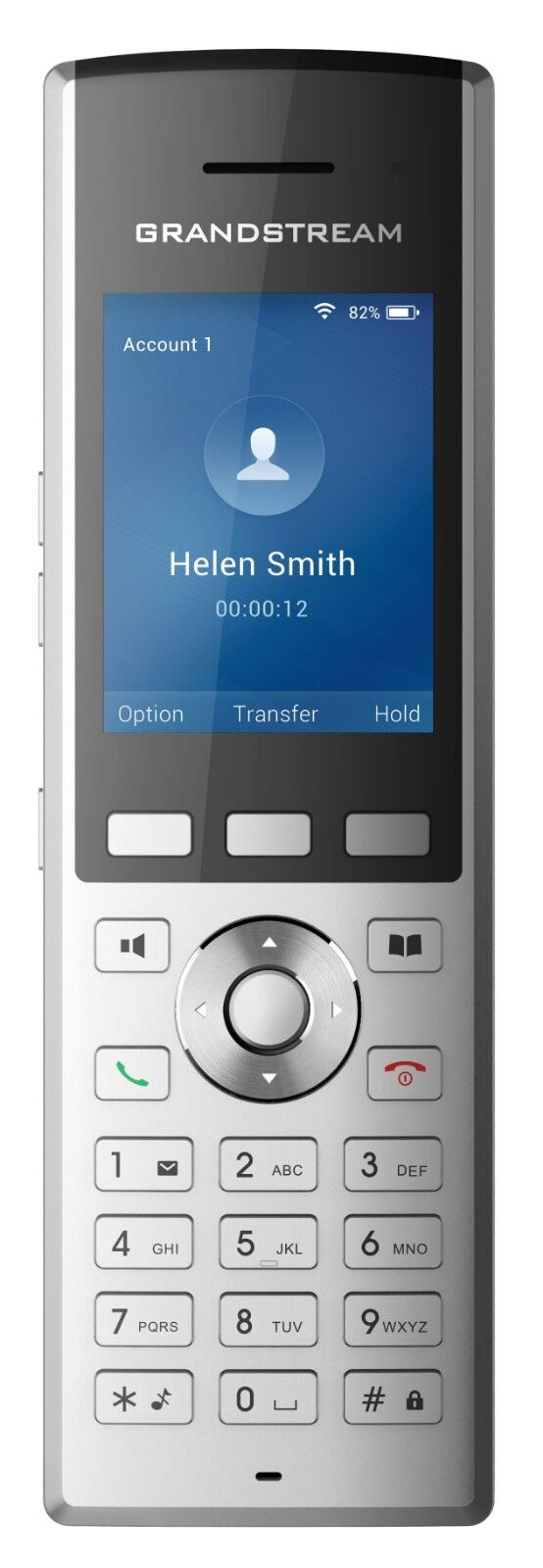

Name: GSS-WP820 Portable WiFi Phone by Grandstream
Brand: Grandstream
SKU: 8897
Availability: InStock

GSS-WP820 Portable WiFi Phone by Grandstream

Description

Dual-band Wifi with efficient antenna design and advanced roaming support

Bluetooth for syncing headsets and mobile devices(contact and call transferring)

HD voice & dual MIC design with AEC and Noise Shield Technology

Rechargeable 1500 mAh battery, 7.5 hour talk time, 150-hour standby

Built-in accelerometer, panic button, push-to-talk

Micro USB port and 3.5 mm headset jack

2 SIP accounts, 2 lines

Support custom Android apps that fit the phone’s screen/keys.

Enterprise Portable Wi-Fi Phone
The WP820 is a portable Wi-Fi phone designed to suit a variety of enterprises and vertical market
applications, including retail, logistics, medical and security. This powerful, portable Wi-Fi phone comes
equipped with integrated dual-band 802.11a/b/g/n Wi-Fi support, advanced antenna design and roaming
support, and integrated Bluetooth for pairing with headsets and mobile devices. By adding 7.5 hour talk time
and HD voice with dual-MICs, the WP820 offers a powerful combination of features, mobility and durability to
suit all portable telephony needs.

GSS-WP820 Portable WiFi Phone by Grandstream

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
Voice and Video Codecs and
Capabilities
Support for G.711µ/a, G.729A/B, G.722 (wide-band), iLBC, Opus, in-band and outof-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS,
H.264 (decoding only)
Wi-Fi Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n (2.4GHz & 5GHz)
Wi-Fi Encryption WEP, WPA/WPA2, WPA Enterprise
Graphic 2.4 inch (240×320) TFT color LCD
Peripherals 3 soft keys, dial, hangup, speakerphone, phonebook, backlit keypad, proximity
sensor, accelerator, vibration motor, volume button and navigation keys
Push-to-Talk Customizable button for push-to-talk, panic call and other related functions
Bluetooth Yes, Bluetooth 4.2
Auxiliary Ports 3.5 mm headset jack, Micro USB port for charging , dual-MIC, dual-color LED
Telephony
Hold, transfer, forward, 3-way audio conference, downloadable phonebook (XML,
LDAP, up to 1000 items), call waiting, call log (up to 100 records), off-hook auto dial,
auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over, push to talk
Operating System
Android 7.0, supports custom Android apps that fit the phone’s screen/keyboard
*When using Android applications, limitations may apply. No touch-screen available, only physical-key browsing
on small LCD 320×240 screen.
Security User and administrator level passwords, MD5 and MD5-sess based authentication,
256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control
HD Audio Yes, both on handset and speakerphone with support for wideband audio,
HAC supported
QoS 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS
Multi-language English, Arabic, Chinese, Czech, Dutch, German, French, Hebrew,
Italian, Japanese, Polish, Portuguese, Russian, Spanish, Turkish and more
Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or
encrypted XML configuration file, manual upload, USB upgrade
Power & Green Energy Efficiency
Universal power adapter included
Input: 100-240VAC; Output: +5VDC, 1A (5W)
1500mA Li-ion battery, 150h standby time and 7.5h talk time
Physical
Headset dimensions: 168.5 x 52.5 x 21.8mm
Charger cradle dimensions: 76 x 73 x 81mm
Handset weight: 161g
Handset package weight (not including QIG): 456g
Temperature and Humidity Operating Temperature: 0ºC to 45ºC; Operating Humidity: 10-90% (non-condensing)
Storage Temperature: -20ºC to 60ºC; Storage Humidity: 10%-90% (non-condensing)
Package Contents Handset unit, universal power supply, charger cradle, belt clip, 1 Li-ion battery,
Quick Start Guide
Durability Drop-safe from 1.2 meter height
Compliance
CE: EN 301 893; EN 300 328; EN 55032; EN 55035; EN 61000-3-2;EN 61000-3-3; EN
62368-1; EN 301 489-1/17; EN 50360; EN 62479; EN 50663; EN 50566.
FCC: FCC Part 15B; FCC Part 15C; FCC Part 15E; FCC Part 68 HAC.
RCM: AS/NZS 4268; AS/NZS 60950.1; AS/NZS CISPR 32; CISPR 35; AS/CA S004; AS/
ACIF S040.
Japan: MIC-R; China: SRRC; EAC; RoHS 2.0(2011/65/EU&(EU)2015/863) REACH.
