Grandstream GRP2612 IP Phone

grandstream-grp2612

Compare

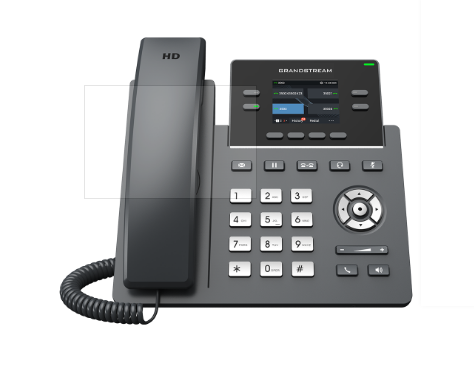

Grandstream GRP2612 IP Phone

The GRP2612 features a sleek design and a suite of next-generation features including WiFi support on the GRP2612W and PoE on the GRP2612P.

Key features include 16 virtual multi-purpose keys (VPKs), a color LCD with swappable face plates for easy logo customization and more.

The GRP series includes carrier-grade security features to provide enterprise level security, including secure boot, dual firmware images and encrypted data storage.

For cloud provisioning and centralized management, the GRP2612 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR),
DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP,
IPV6
Network Interfaces
Dual switched auto-sensing 10/100 Mbps Ethernet ports (GRP2612)
Dual switched auto-sensing 10/100 Mbps Ethernet ports with integrated PoE (GRP2612P
& GRP2612W)
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
(GRP2612G)
Wi-Fi GRP2612W, Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)
Graphic Display 2.4 inch (320×240) TFT color LCD
Feature Keys
4 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive softkeys,
5 navigation/menu keys, 9 dedicated function keys for: MESSAGE(with LED indicator),
TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOLAuxiliary Port RJ9 headset jack (allowing EHS with Plantronics headsets)
Voice Codecs and Capabilities Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band
and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
Telephony Features
Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP,
up to 1000 items), call waiting, call log(up to 1000 records), XML customization of screen,
off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized
music ringtones and music on hold, server redundancy and fail-over
HD Audio Yes, HD handset and speakerphone with support for wideband audio
Base Stand Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)
QoS Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM) on GRP1612W and Layer 3 (ToS, DiffServ,
MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, 256-
bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot.
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean,
Japanese, and more
Upgrade/Provisioning Firmware upgrade via FTP/TFTP/TFTPS/HTTP/HTTPS, mass provisioning using GDMS/
TR-069 or AES encrypted XML configuration file.
Power & Green Energy Efficiency
Universal power adapter included:
Input:100-240V ; Output: +5V, 0.6A ;
Integrated Power-over-Ethernet(802.3af)
IEEE 802.3az Energy-Efficient Ethernet
Max power consumption 3W (power adapter, GRP2612/GRP2612W/GRP2612G) or 3.8W
(PoE, GRP2612P/GRP2612W/GRP2612G)
Temperature and Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Package Content GRP2612 phone, handset with cord, phone stand, 5V power adapter (with GRP2612/
GRP2612W/GRP2612G only), network cable, Quick Installation Guide, GPL license
Physical Dimension: 203mm x 193mm x 52.1mm ; Unit weight: 554g ; Package weight: 936g
GRP2612/GRP2612P/GRP2612G
Compliance
FCC: Part 15 Class B; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/CA S004.
IC: ICES-003; CS-03, Part V.
GRP2612W Compliance
FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part 68
HAC.
CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; EN 301 489-1;
EN 301 489-17; EN 300 328; EN 301 893; EN 62311.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268; AS/NZS 2772.2; AS/CA S004.
IC: ICES-003; CS-03, Part V; RSS-247; RSS-102.
