Name: foxconn motherboard A78AX 3.0 AM3
Brand: Foxconn
SKU: 9525
Availability: InStock

foxconn motherboard A78AX 3.0 AM3

$98.00

foxconn-motherboard-a78ax-3-0-am3

Compare

foxconn motherboard A78AX 3.0

A78AX 3.0

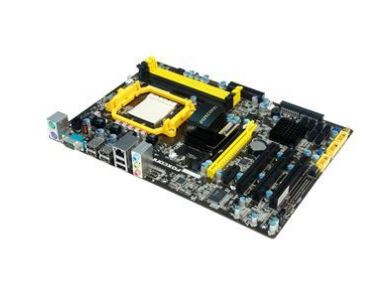

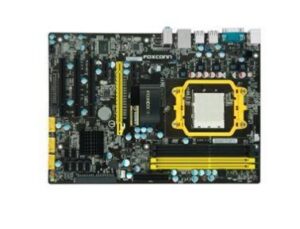

foxconn motherboard A78AX 3.0 AM3

Based on the AMD 770 chipset with SB710 southbridge, the A78AX 3.0 supports socket AM3 processors, including AMD Phenom™II models.and with Dual channel DDR3 memory support up to 1600MHz(overclocking), the A78AX 3.0 delivers all-round system performance.

Processor	AMD Phenom™ II,Athlon™ II processor, Socket AM3
Chipset	AMD® 770 + SB710
Front Side Bus	5.2 GT/s HyperTransport
Memory	Dual channel DDR3 1600(oc)/1333/1066 x 4 DIMMs, Max. 16GB
VGA on Die	Discreted
Expansion Slots	1* PCIe 2.0 x16, 2* PCIe 2.0 x1, 3* PCI
IDE	ATA 133 * 1
Serial ATA(SATA)/RAID	SATAII * 6 w / RAID 0, 1, 10
Audio	5.1 channel HD Audio
LAN	Gigabit LAN
IEEE1394	N/A

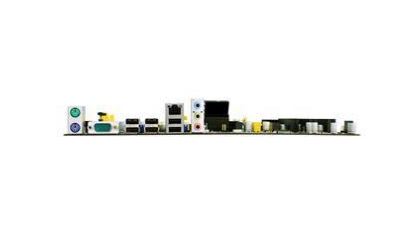

Back Panel I/O Ports	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x Series port 1 x Audio jack supports 3 jacks 6 x USB 2.0 ports 1 x RJ45 LAN jack
Internal I/O Connectors	1 x ATX 24-pin power connector 1 x 4-pin ATX 12V power connector 2 x 4-pin CPU/System Fan connectors 1 x 3-pin NB Fan connector 1 x Front Audio header 1 x Front Panel header 1 x Buzzer 3 x USB 2.0 connectors support additional 6 ports 6 x SATAII connectors 1 x ATA133 IDE connector 1 x Intrusion Alarm header 1 x CD-in connector
BIOS Features	8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD	rivers, DirectX10, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability	PCI 2.3, USB2.0, DMI 2.5
Special Features
Form Factor	ATX ( 12.0″ x 8.6″)
